Types of certificates

  • Domain Validation (DV) - automatable and free
  • Organization Validation (OV) - e.g. identity…
  • Extended Validation (EV) - e.g. phone call…
  • VMC (EV++) - e.g. trademark verification…

CN / SAN

  • To what (domain) this certificate is attached to
  • Wildcard certs (e.g. example.com and *.example.com)

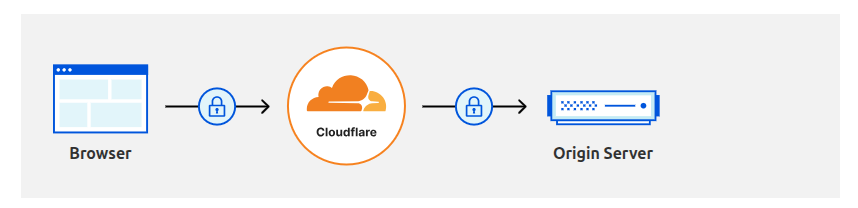

Proxy VS not proxy

Edge certificates

  • The one visible from customer
  • Generally Let’s Encrypt or Google Trust Services

Cloudflare SSL Modes

  • Off
  • Flexible
  • Full
  • Full (strict)
  • Strict

Full

You should rely on this flexibility

Connection is encrypted

CloudFlare Automatic SSL/TLS

  • Probe regularly to “upgrade” the SSL Mode
  • We don’t like it and force mode to “Full”

CF Advanced/Custom Cert

  • Provide certificates ourself
  • More fine grained management
  • We don’t use those services

Client certificates and mTLS

  • The other direction

CF Origin Certificates

  • Free
  • Up to 15 years
  • Self signed (valid behind proxy)

Encryption VS validation

  • A SSL cert is needed to encrypt
  • Whether valid or not

The case Cloudflare Pages

  • Edge certificate managed by Cloudflare
  • Origin certificate managed by Cloudflare

The case Another Hosting

  • Edge certificate managed by Cloudflare
  • Method A - Cloudflare origin certificate (added in Hosting Provider)
  • Method B - Hosting Provider managed certificate (using DCV)

Check SSL certificate

It’s only the “edge” cert

  • Always valid
  • Always short

Check origin certificate

openssl s_client -servername example.com -connect foobarbaz.com:443 -showcerts < /dev/null 2>/dev/null

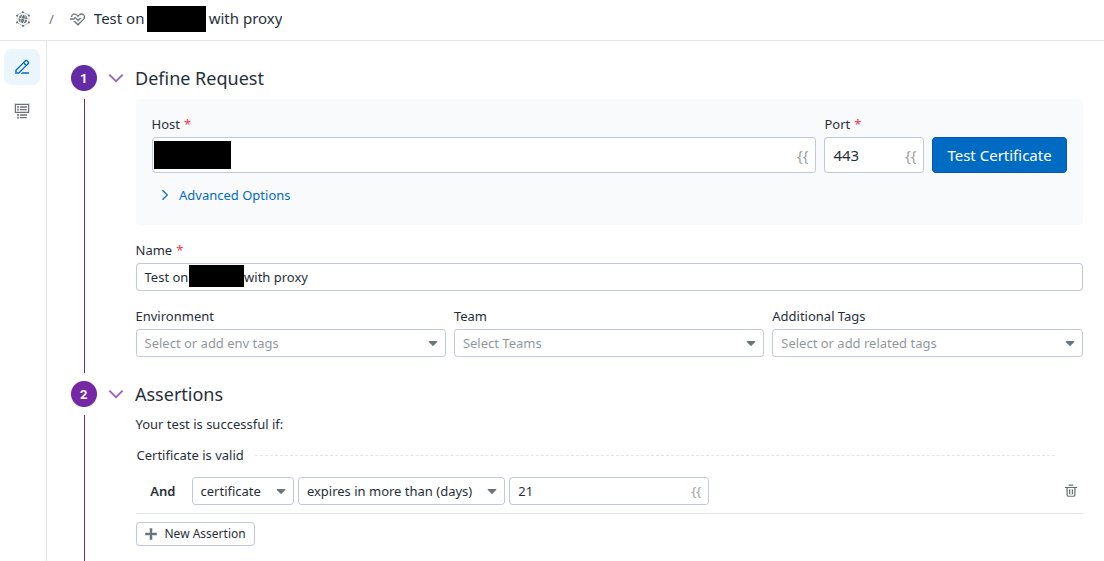

Datadog SSL Monitoring

  • Beware the costs - 2 locations, weekly
  • Datadog fixed it this week!

A simple SSL monitor

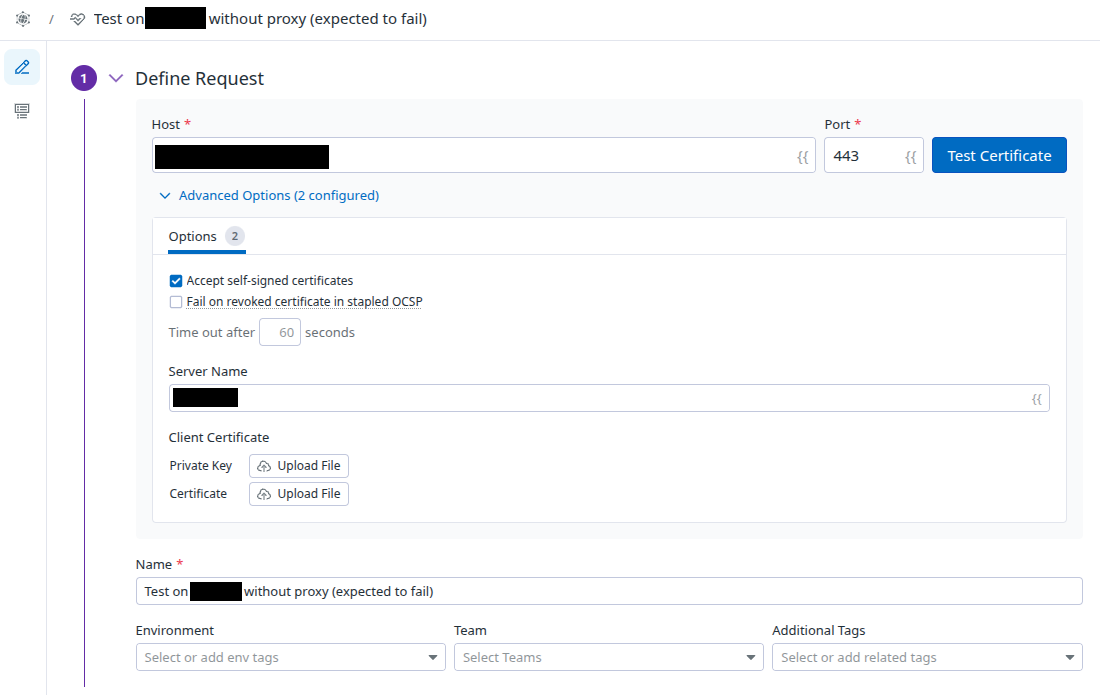

An “origin” monitor

Notes

  • Monitoring proxy cert is generally useless
  • Monitoring origin cert is not always possible
  • Monitoring origin cert is not always meaningful

More

  • Certificate chain / CA Bundle
  • CSR
  • Private key
  • Lists of revoked certs (CRL, OCSP)

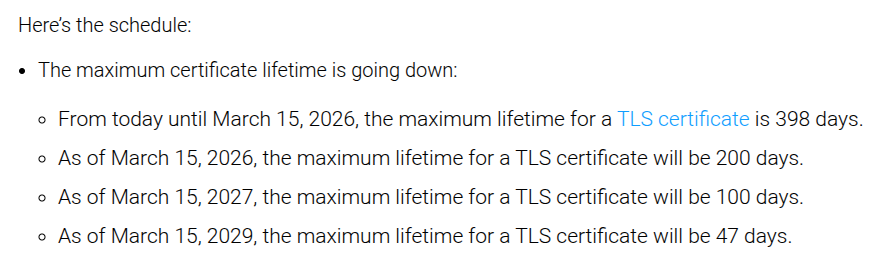

TLS lifetime planned reduction

Solving the TLS lifetime planned reduction problem

  • Cloudflare Origin Certificates! Mode Full! Everywhere
  • Automate few residuals hosts (ACM, acme.sh…)
